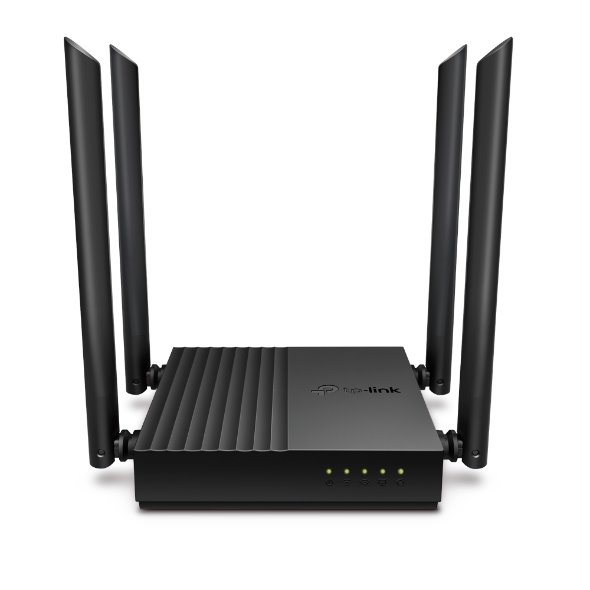

tp-link Archer C64, AC1200 Dual-Band Wi-Fi RouterSPEED: 400 Mbps at 2.4 GHz + 867 Mbps at 5 GHzSPEC: 4× Antennas, 1× Gigabit WAN

WIRELESS
Standards Wi-Fi 5
IEEE 802.11ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz
WiFi Speeds AC1200
5 GHz: 867 Mbps (802.11ac)
2.4 GHz: 400 Mbps (802.11n)
WiFi Range 3 Bedroom Houses4× Fixed High-Performance Antennas
Multiple antennas tvar a signální boosting array to cover more directions and large areas
Beamforming
Concentrates wireless signál strength towards clients k expand WiFi range
WiFi Capacity MediumDual-Band
Allocate devices to different bands for optimal performance
MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients
Airtime Fairness
Improves network efficiency by limiting excessive occupation
Working Modes Router Mode
Access Point Mode
HARDWARE
Processor 1.2 GHz CPU
Ethernet Ports 1× Gigabit WAN Port
4× Gigabit LAN Ports
Buttons WPS/Reset Button
Power 12V \u003d 1A
SECURITY
WiFi Encryption WPA
WPA2
WPA3
WPA/WPA2-Enterprise (802.1x)
Network Security SPI Firewall
Access Control
IP and MAC Binding
Guest Network 1× 2.4 GHz Guest Network
1× 5 GHz Guest Network
SOFTWARE
Protocols IPv4
IPv6
Parental Controls URL Filtering
Time Controls
WAN Types Dynamic IP
Static IP
PPPoE(Dual Access)
PPTP(Dual Access)
L2TP(Dual Access)
Quality of Service QoS by Device
Cloud Service OTA Firmware Upgrade
TP-Link ID
DDNS
NAT Forwarding Port Forwarding
Port Triggering
UPnP
DMZ
IPTV IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCP Server
DHCP Client List
Address Reservation
DDNS TP-Link
NO-IP
DynDNS
Management Tether App
Webpage
Check Web Emulator>
OTHER
System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, nebo ostatní JavaScript-enabled browser
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access)
Certifications CE, RoHS
Environment Operating Temperature: 0?~40?
(32? ~104?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
TEST DATA
WiFi Transmission Power CE:
<20dBm(2.4 GHz), <23dBm(5.15 GHz~5.25 GHz)
FCC:
<30dBm(2.4 GHz & 5 GHz)
WiFi Reception Sensitivity 5 GHz:
11a 6Mbps:-95dBm
11a 54Mbps:-77dBm
11ac VHT20 MCS8:-71dBm
11ac VHT40 MCS9:-67dBm
11ac VHT80 MCS9:-63dBm
2.4 GHz:
11g 6Mbps:-96dBm
11g 54Mbps:-78dBm
11n HT20 MCS7:-77dBm
11n HT40 MCS7:-74dBm
11ac VHT20 MCS8:-73dBm
11ac VHT40 MCS9:-68dBm
PHYSICAL
Dimensions (W×D×H) 4.7 × 4.7 × 1.1 in
(120 × 120 × 27.9 mm)
Package Contents Wireless Router Archer C64
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
